Fortinet FANT-04ABGN-1414-P-N Antenna - 2400 MHz to 2500 MHz, 5150 MHz to 5850 MHz - 14 dBi - Indoor, OutdoorMast - N-Type Connector

$1,174.31

SKU: 999A3Z

MFG #: FANT-04ABGN-1414-P-N

Quantity

- +

Availability: 0 units In Stock

Check Warehouse Availability

Guarantee Safe
Checkout

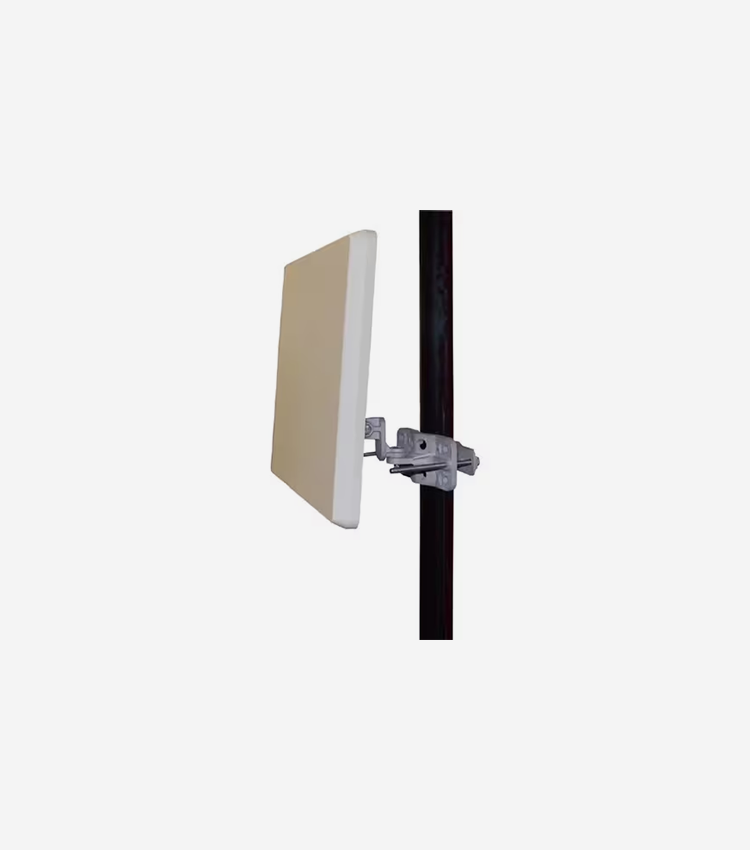

This high density 14 dBi patch antenna is well suited for use outdoors, in warehouses, or in manufacturing environments where it must withstand exposure to moisture and dust. The antenna features a 35-degree beamwidth at both the 2.4GHz and 5GHz bands which helps to minimize co-channel interference. This antenna features four dual band N-Type jacks on the back of the antenna.

Easily mounts to a mast
Designed for outdoor applications

Overview

Brand	Fortinet
Product Line	Fortinet
Model	FANT-04ABGN-1414-P-N
Manufacturer	Fortinet

Network & Communication

Impedance	50 ohm

Connectivity

Connector Provided	4 x N-Series connector male

Technical Information

Antenna Cable Length	24 inch
Antenna Placement	Indoor, Outdoor
Antenna Form Type	Patch
Antenna Gain	14 dBi
Max Operating Temperature	158 degree Fahrenheit
Signaling Type	Wi-Fi
Frequency Range	2400 - 2500 MHz, 5.150 - 5.850 GHz
Horizontal Beamwidth	35°
Min Operating Temperature	-22 degree Fahrenheit
Vertical Beamwidth	35°
Voltage Standing Wave Ratio (VSWR)	2.0:1

Product Information

Service Activation	No
Category of Accessory	Antennas
Features	Linear polarization, Port-to-port isolation 28 dB, Vertical polarisation
Product Type	Antenna
Package Content	Articulating bracket
Packaged Quantity	1
